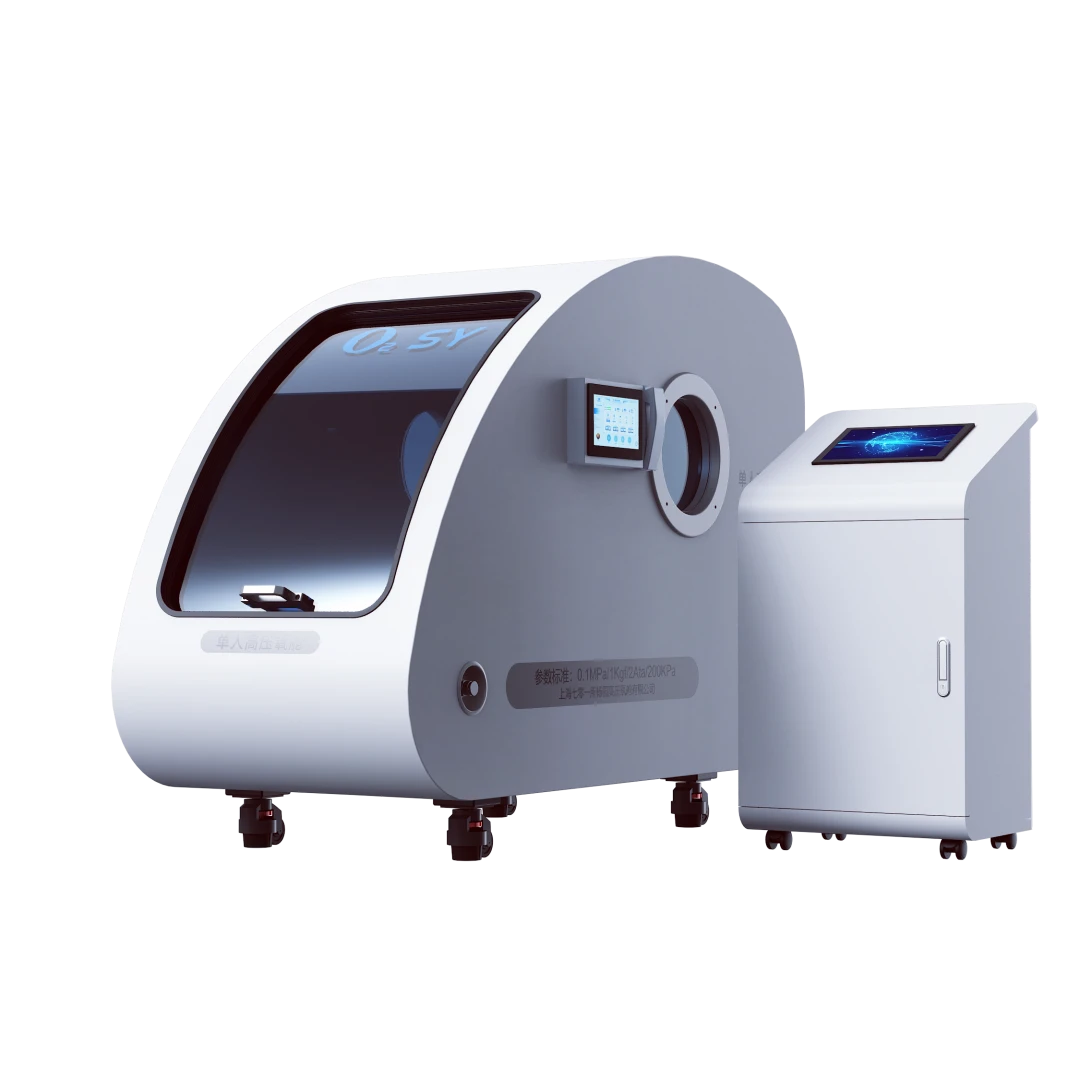

Bluewave Rigid Hyperbaric Chamber Model IV (Monoplace Chamber I)

Bluewave Rigid Hyperbaric Chamber Model IV (Monoplace Chamber I)

$51,800.00
$51,800.00 $51,800.00
SAVE 0% Sold out
View full details

Fully Descriptions


Feature Specification
Pressure Range 1.1 - 1.9 ATA (10-90 kPa)
Chamber Material 5.0mm Stainless Steel Sheet with Automotive Paint Finish
Dimensions (L x W x H) 2000mm x 870mm x 1380mm
Total Weight 900 kg
Capacity 1 Person
Main Unit Power 2300 W (220V AC, 50/60Hz)
Oxygen Flow & Purity 10 L/min at 90% - 93% Concentration
Control System Dual Control (7-inch Internal & 10-inch External Screens)
Air Conditioning Customized 790W Water Chiller System
Noise Level Internal < 65 dB / External ≤ 65 dB

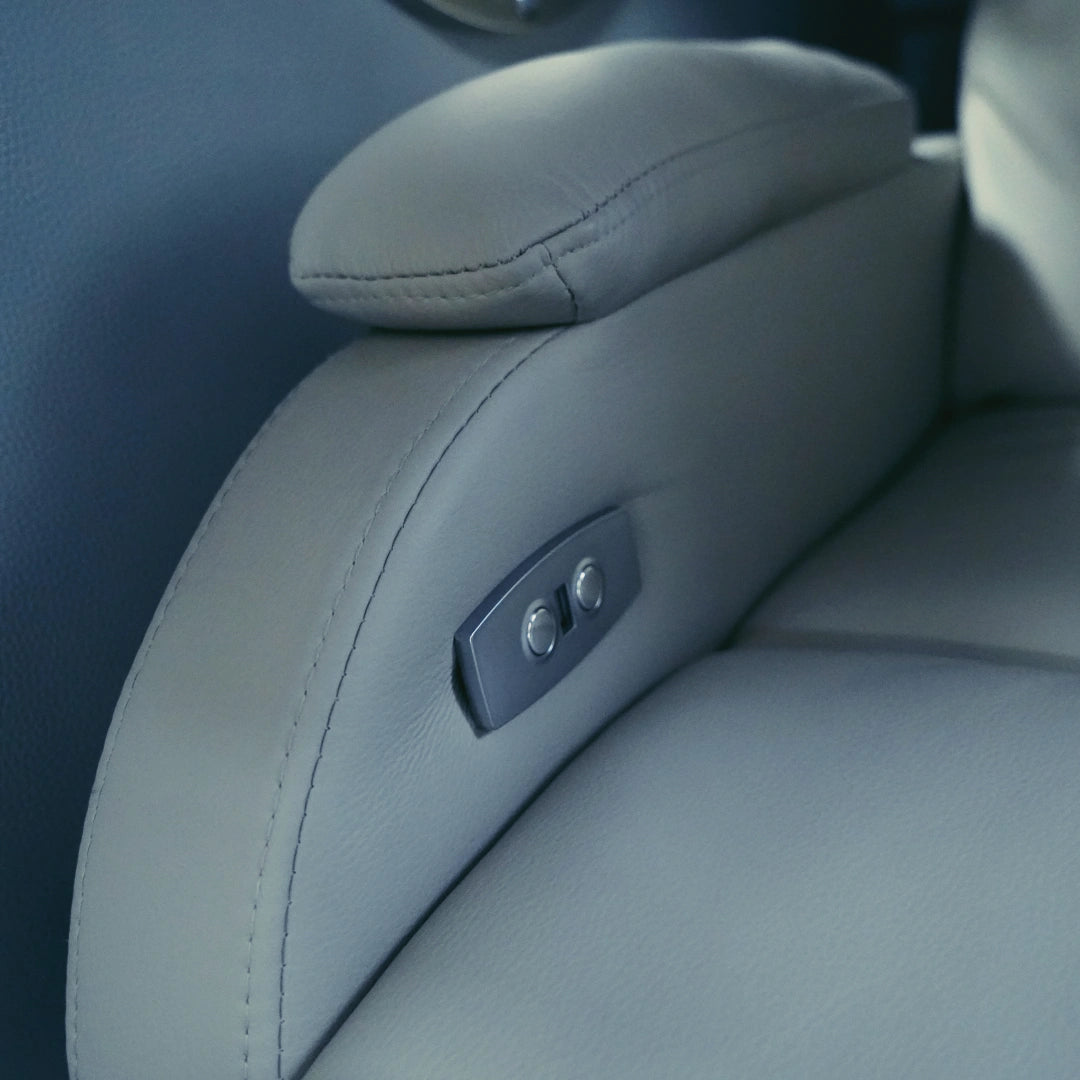

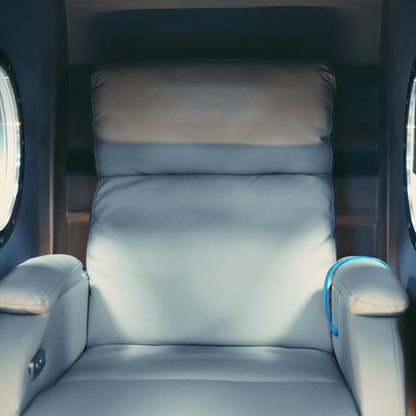

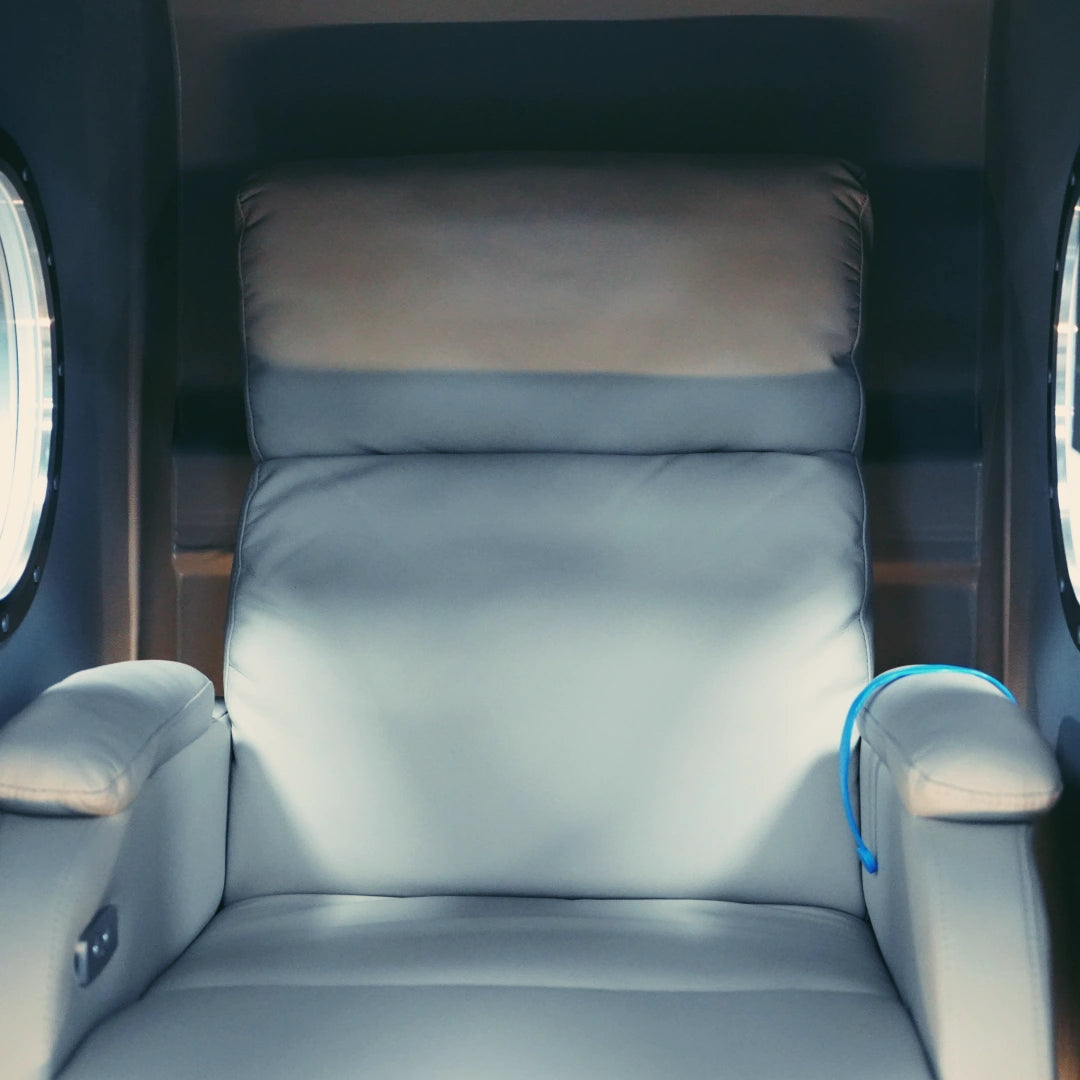

Interior Seating Single Electric Sofa (24V In-cabin Voltage)



Robust Construction: The chamber body is built from 5.0mm thick stainless steel and utilizes stainless steel reinforcing ribs for structural integrity.

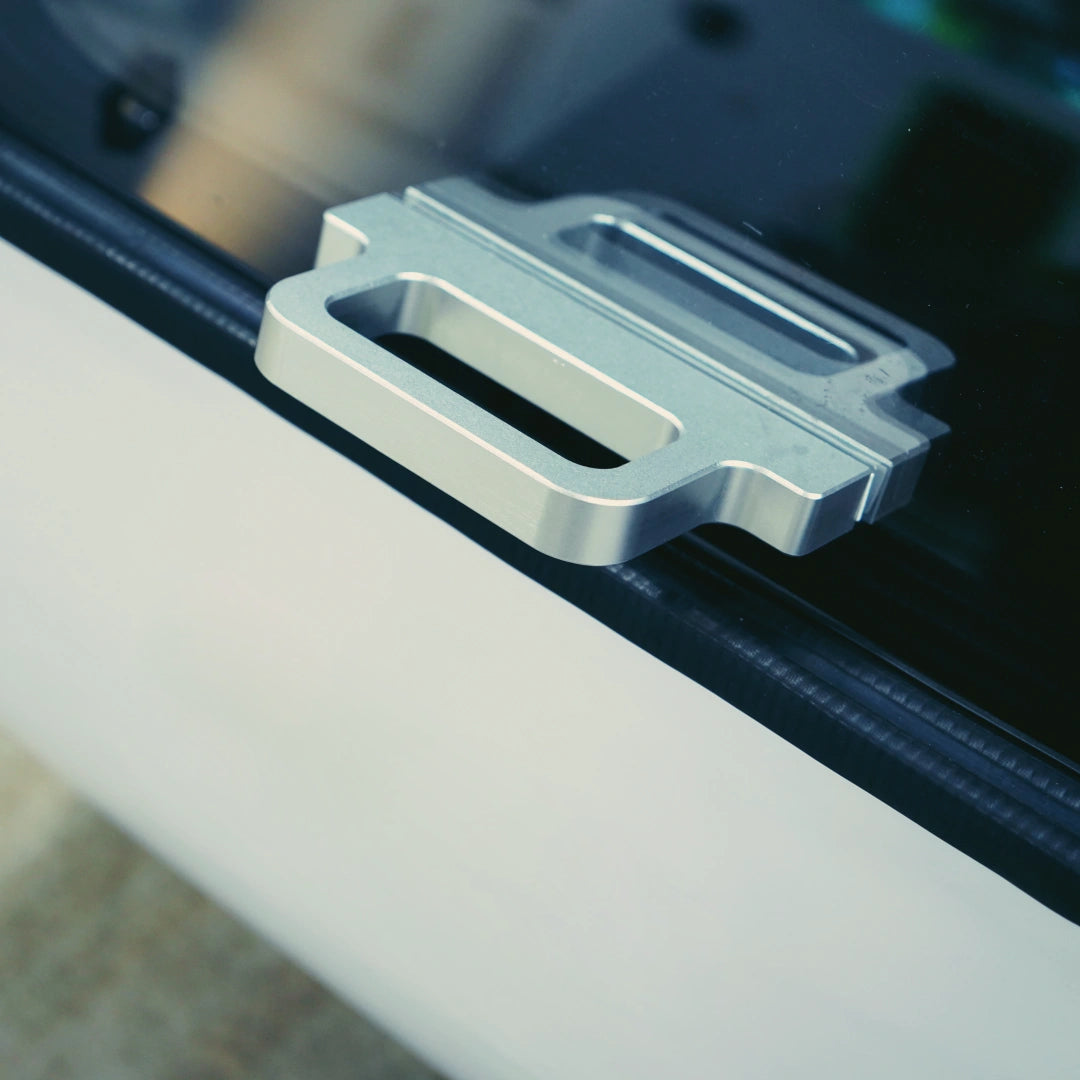

Advanced Sealing: Features an aviation-grade door panel (20mm thick) and a single-piece installation module, ensuring a high-pressure environment without splicing.

Full Control & Monitoring: The dual-control system allows both the operator and the occupant to monitor cabin pressure, temperature, oxygen flow, and lighting via dedicated touch screens.

Dual Compressor Technology: Powered by dual oil-free and water-free compressors (650W) for a clean and stable air supply.

Warranty: Includes a 1-year full machine free warranty (including all parts).

certifications for 701 Yangyuan

Welcome to Bluewave, the exclusive Southeast Asian regional agent for Shanghai QiLingYi Yangyuan.

We are a premier health-tech company dedicated to professional hyperbaric oxygen therapy.

By bridging the gap between advanced naval engineering and personal wellness, we focus on your recovery, anti-aging, and long-term health.

At Bluewave, we believe that medical-grade oxygen therapy should be accessible to those seeking peak performance and a rejuvenated life

Why Choose 701 Yangyuan

  • Unrivaled Safety

    All chambers are designed with no electrical components inside, eliminating any risk of ignition. Each unit includes an Electrostatic Discharge (ESD) clip to safely ground static electricity from the patient.

  • Advanced Comfort

    Systems include integrated oxygen warming and humidification, maintaining approximately 70% relative humidity for a comfortable treatment environment.

  • Superior Durability

    Using Abrasive Blasting Technology (Sa2.5-3.0), the chambers achieve maximum paint adhesion. Interiors are coated with American "TNEMEC" paint, which is non-toxic, odorless, and anti-corrosive.

  • Patented Innovations

    Featuring the domestically pioneered lightweight thin-shell translational self-sealing door, our designs save 1/5 of effective space compared to traditional doors while ensuring a perfect seal through internal pressure.
